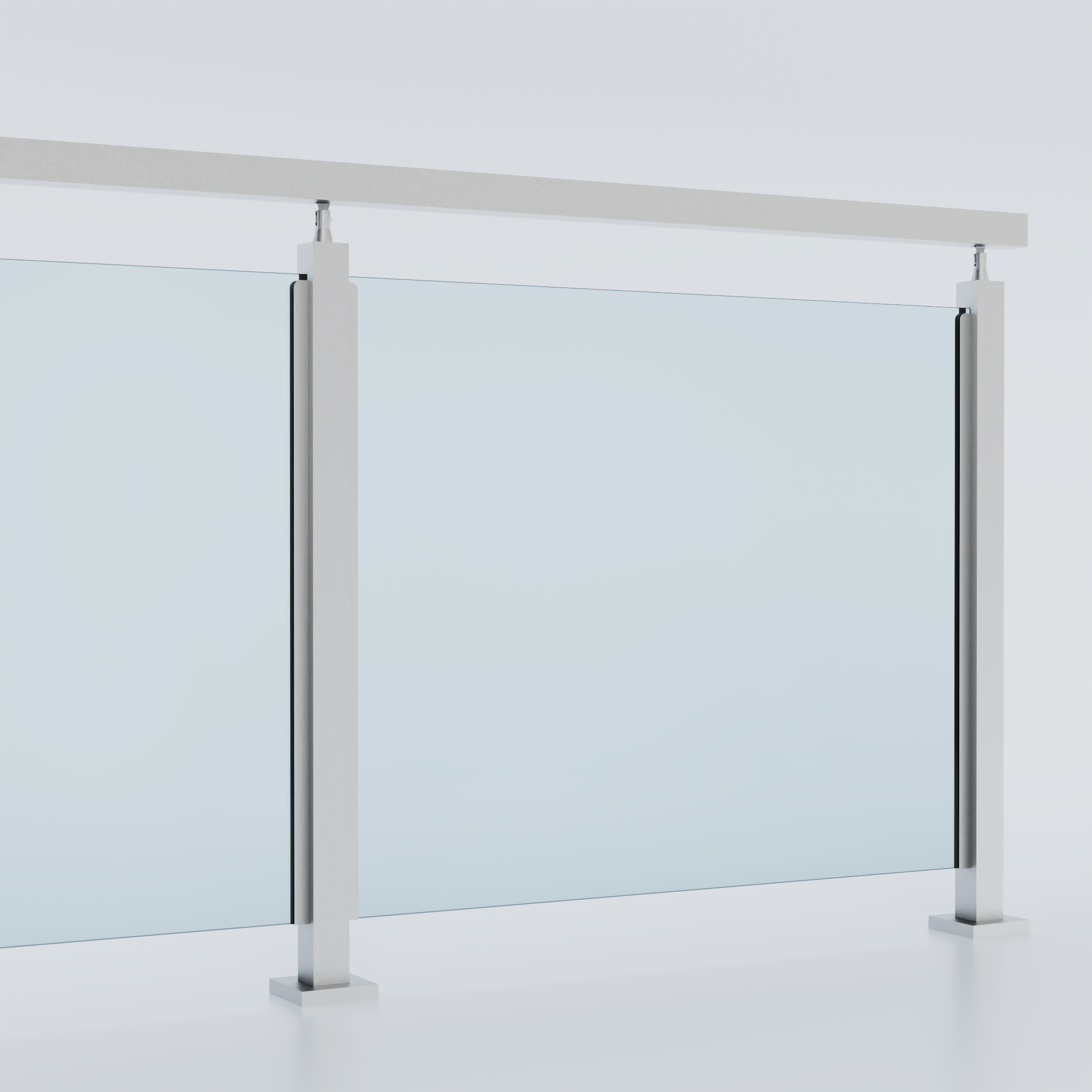

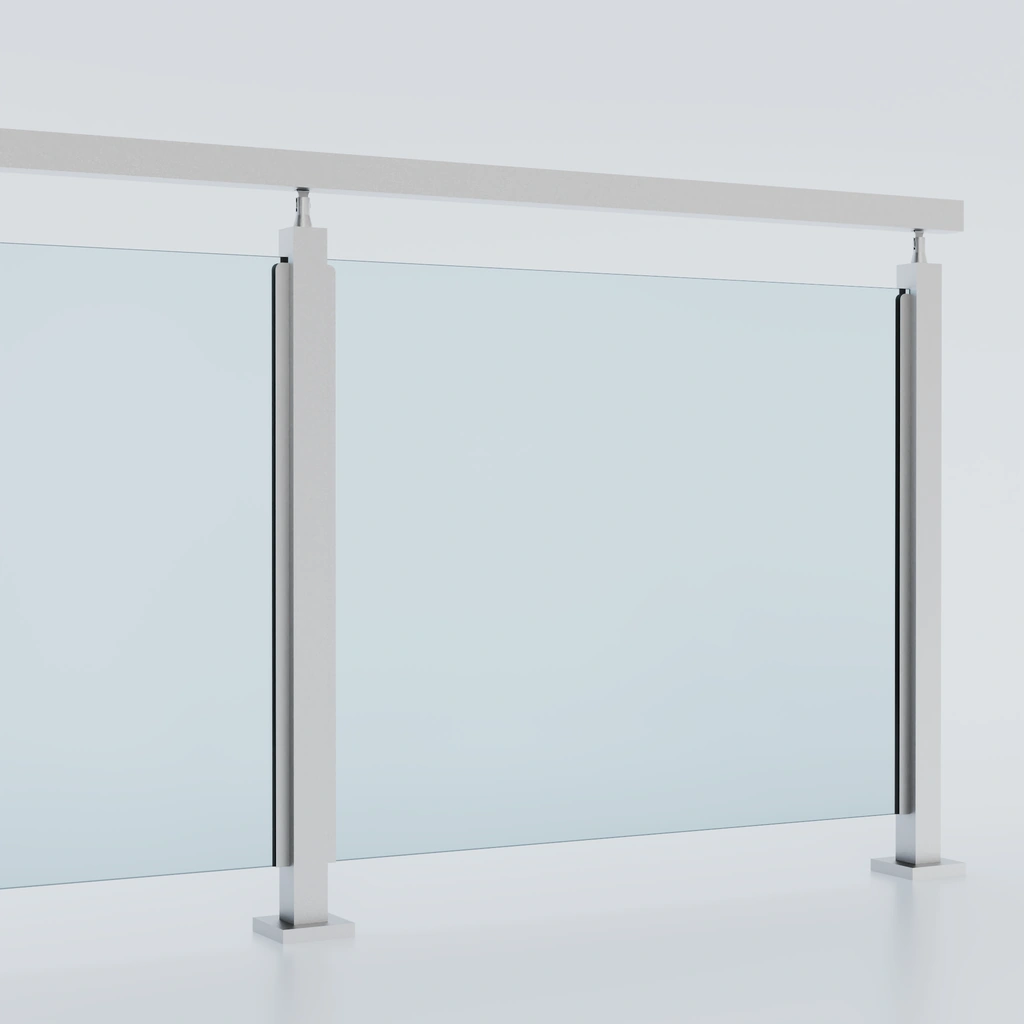

Glass Railing Post , 1050/304mm, MOD 0014, 316/304
Brushed square tube glass post. Fast bolt-down installation.
| Material | Stainless Steel 316/304/201 |
| Application | floor / Balcony/Stairs/Deck |
| Mounting Type | Floor Mount |
| Glass Thickness | 1/2" (12mm) Monolithic |
| Height | 41.34"/33.46" (1050/850mm) |
| Surface Finish | Satin Brushed |
| Packaging Unit | 1 pc. |
Full Specifications
| Parameter | Details |
|---|---|
| Product Name | Glass Railing Post | 316/304 SS | MOD 0014 |
| SKU / Part Number | 0014 |
| Application |
floor / Balcony/Stairs/Deck |
| Material | Stainless Steel 316/304 |
| Mounting Type | Floor Mount |
| Glass Structure | Monolithic |
| Glass Thickness (Standard) | 1/2" (12mm) |
| Compatible Glass Thicknesses | 12mm |
| Product Height |
41.34"/33.46" (1050/850mm) |
| Bore Diameter (Mounting Side) | 0.47" x 0.47"(12mm x 12mm) |
| Reception Type | Glass |
| Surface Finish | Satin Brushed |
| Packaging Unit | 1 pc. per set including clamp body, cover cap and rubber inlay |
| Standard Delivery | 3-5 business days |
| Certifications | IS 9001 |
FAQ
Q1: Which stainless steel grade should I choose for my project?
A: We offer premium SS304 (ideal for indoor or standard inland residential projects) and SS316 (highly recommended for coastal areas, high-humidity zones, and commercial projects due to its superior corrosion resistance).
Q2: What components are included, and are they compatible with different railing types?
A: Our systems are designed for hassle-free installation. All posts and spigots include the matching cover cap to hide bottom screws, along with pre-drilled bases. Depending on your choice, we provide premium fittings tailored for 6+6 laminated glass, cables, or bars/tubes.
Q3: How are they installed, and what is the production lead time?
A: They are designed for easy Floor Mount: simply drill holes into concrete or decking and secure via expansion bolts. Samples take 3–5 days, while bulk production generally takes 15–25 days, varying depending on your actual order quantity.
